4-Way Articulating Borescope Series – Precision in Every Direction

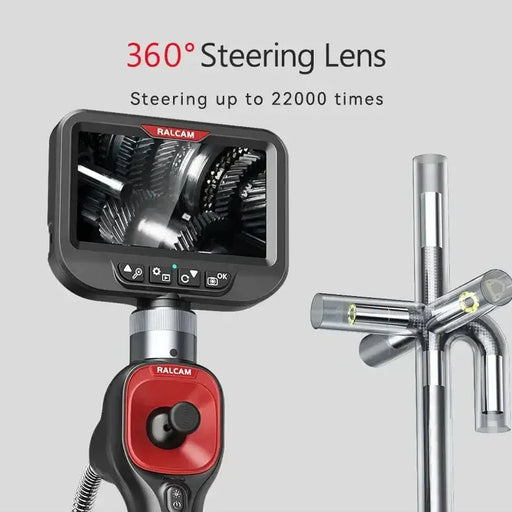

Full 360° Tip Control

The difference shows up on the jobs where you cannot reposition the probe. Once the tip is deep in a combustion chamber, a turbine casing, or a compound pipe bend, pulling it back out to try a different angle costs you the access you just worked for. Four-way steering lets you sweep the entire field from where you already are — look back along a valve face, follow a weld seam around a bore, check the underside of an obstruction.

2-Way vs 4-Way Articulating Borescope

If most of your work is a straight look down a spark plug hole or a drain, 2-way models do the job for less. The deeper and more winding the path, the more a 4-way borescope pays back. The full comparison is in articulating vs non-articulating borescopes.

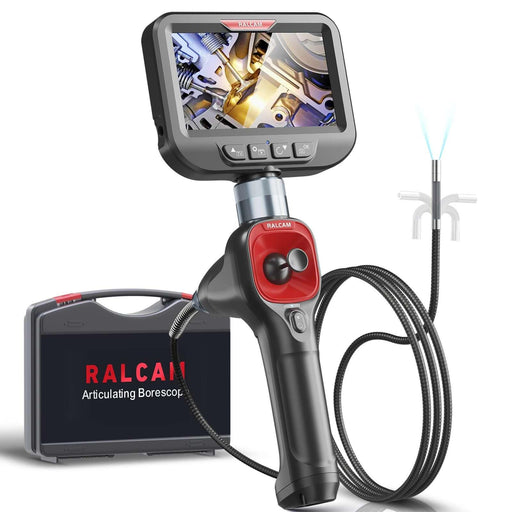

4-Way Borescope Models

Sizing and control

Camera diameters run 3.9 mm, 6.2 mm, and 8.5 mm; 3.9 mm reaches modern spark plug wells that a standard probe will not enter. Cables come in 1 m, 2 m, and 3 m, with custom lengths available (custom lengths are made to order and cannot be returned). Control is by joystick or rocker, operated one-handed while the other hand feeds the cable.

How to Steer a 4-Way Borescope

1. Center the joystick before you insert, so the tip goes in straight.
2. Feed the cable to the area you want, then stop pushing — steer only once the probe is still.
3. Sweep in a slow circle to map the space, then hold the joystick on the angle you want to record.
4. Return the joystick to center before you pull out, so the tip does not catch on an edge.

Never force the joystick against resistance. If the tip will not move, the cable is usually bent too tightly somewhere behind it — straighten the cable and try again.

Where a 360° Articulating Borescope Pays for Itself

Turbine and blade inspection in aviation MRO, GDI valve and piston work where a systematic sweep beats a lucky angle, weld and crack detection in NDT, and any inspection that has to be documented rather than just glanced at. For engine work, see automotive borescopes; for maintenance and manufacturing, see industrial borescopes; for fluorescent crack detection, see UV borescopes.

All probes are IP67 rated with adjustable LED illumination.
